How to use Merge/Merge Join Transformation Without SORT Tranformation.

Merge/Merge Join transformation need to be preceded by a Sort Transformation.However it is a good SSIS Practise to sort the data at the source.Sort Transformations can slow down the ETL process when dealing with large volumes of data.

Assuming that the data source is an OLE DB Source a simple ORDER BY clause in the SQL statement of the Source will sort the data at the source itself.

In order to bypass the SORT Transformation 2 properties need to be configured on the source
IsSorted
SortKeyPosition

The above mentioned 2 properties will be configured through the advanced source editor

Once the IsSorted property is set to TRUE Configure the SortKeyPosition.To configure the sortkeyposition go to the output columns

Select the column on which the data is sorted in the source and set the SORTKeyposition to 1

This configuration will tell the data flow engine that the data has already been sorted by the emp_id in the source.

How to use a Cache Transform with Excel/CSV Source File

In order to compare the data from 2 excel files a lookup transformation is used.Add a data flow task with excel source.

Configure the Cache Transform for an excel source.

Set the index position of the source column which would be looked up  to 1.

Configure the column mappings of the source excel file and the cache

The Cache Connection Manager is configured to be used in the lookup transformation.Same procedure would be followed for a csv source file.

Using OLE DB Command to insert new records & update Existing Records in SQL SERVER Database Table

The OLE DB Command transformation runs an SQL statement for each row in a data flow. It is used to execute an SQL statement that inserts, updates, or deletes rows in a database table.

Package Requirement:For a given source file if the record exists in the database table,update for the new values.If not then insert the new records

Source File:

Lookup/Destination Table:

The package should insert records 4,5 and update record 3 for the new emp_location

Package Design:

Configuring the text file source..

 Data Conversion Transformation converts the source datatype to the column data type in lookup reference table

Lookup Transformation:

For OLE DB Command for matching rows(update)

Map the parameters to the fields in the source file

For OLE DB Command for non matching rows(insert)

Map the parameters to the source file columns.



After Package Execution:

Archival of Data Files using Control Tasks

In a real time scenario there can be multiple data files which are used to load data in staging tables and then need to be archived.Archival of data files can be done by using 2 control flow tasks
For-each-Loop
File System Task.

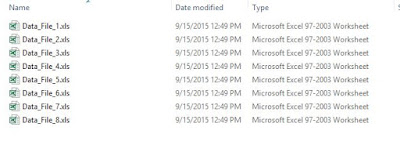

Source Files:

Package:First let's create a user variable file name .Now Add a For-Each-Loop Container Control Task to your package design.



Next Step is configuration of for each loop container.Since we will loop through files select the for each file enumerator

Select the source folder,file type.Since we only require the file name hence select name only.If the source directory consists of subfolders that have files that need to be archived select travserse subfolders.

In the variable mapping select the user variable file name with an index 0.With each occurence of file in the loop the name of the file will be stored in the user variable.

 After configuring the for each loop containers let's add a File System Task



Configuration of File System Task:

Create a File Connection Manager for Destination Directory

If delayvalidation property of the file system task is set to false the task shows an error "variable user::filename is used as a source or destination and is empty."It recieves this error as the variable filename gets its value only on the execution of for each loop.

Hence set the delayvalidation property to true.

Before execution of package

Source Directory:



Destination Directory:

After Execution of Package:
